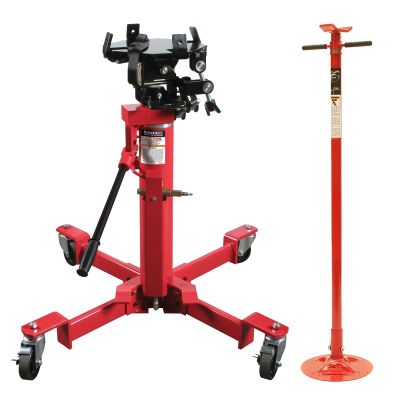

Featuresand Benefits:

• Fully adjustable lifting saddle with four ratchet adjustment fingers that quickly adjust to the transmission pan configuration
• Low lift height of 35” for easy transfer of transmission from jack to work bench. Maximum lift height of 75” accommodates all technicians
• Convenient hand grip for pushing or pulling load when the load is in the lowered position
• Heavy duty nylon locking strap with ratchet fingers for securing the load to the lifting saddle

Fully adjustable lifting saddle with four ratchetadjustment fingers that quickly adjust to the transmission panconfiguration.Heavy duty nylon locking strap with ratchet fingers for securingthe load to the lifting saddle.Foot activated pedal raises air cylinder's ramto maximum load in seconds. Manual pump second stage quickly raises liftingsaddle to desired and precise work height.Low lift height of 35” for easytransfer of transmission from jack to work bench. Maximum lift height of 75”accommodates all technicians.Foot activated lowering pedal provides slowcontrolled lowering of load for first stage and hydraulic release knob forsecond stage.Convenient hand grip for pushing or pulling load when the load isin the lowered position.Four full swivel ball bearing mounted caster wheels foreasy maneuverability. Front casters can be easily locked to prevent the jackfrom rolling if necessary.Required Air Pressure100 PSILow Height35"RaisedHeight75"Saddle Forward Tilt37°Saddle Backward Tilt26°Saddle LateralTilt12° left and rightBase30-1/4" squareShipping Weight145 lbs.
