Air Riveter 1/4" Capaity & Pro Micro Hand Riveter

Air Riveter 1/4" Capaity & Pro Micro Hand Riveter
Features and Benefits:
- PR14: Includes the following nosepieces (see bottom of the tool): 1/4”(6.4mm), 3/16" (4.8mm), 5/32" (4mm), 1/8" (3.2mm), 3/32" (2.4mm)
- PR14: Powerful durable high speed production tool
- PR14: Air release valve quickly returns for high speed assembly operations
- 1422: At 8.5" long, is 20% shorter than standard 3/16" hand riveters
- 1422: Astro's torque multiplying lever design allows for higher pulling power with shorter arms
This combo includes the Astro Pneumatic Tool PR14 Air Riveter - 3/32", 1/8", 5/32", 3/16" and 1/4" Capacity & 1422 Professional Micro Hand Riveter - 3/16" Capacity.

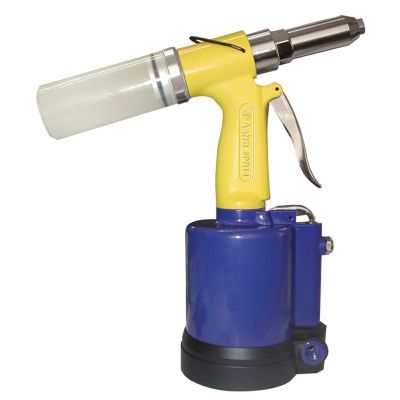

The Astro Pneumatic PR14 Air Riveter is designed for heavy duty industrial application of rivets from 3/32 to 1/4-inch. This tool will increase productivity in any field. Range of use includes industrial, fabrication shops and body shops. Specifications: Rivet Capacity: 1/4-inch, Overall Length: 10-7/8-inch (280mm), Net Weight: 3-1/2-pound (1.6kg), Pulling Force is 633 pounds, Stroke: 15mm, Motor: 1/2hp, Air Inlet Thread NPT: 1/4-inch, Air Hose I.D. Size: 3/8-inch (10mm), Avg. Air Consumption.: 2.320 Liter/Stroke, Air Pressure: 90-120psi. The instructions show you where to find all 5 nose parts. Three are under the unit, one is in the unit and the other is in the bag.
The Astro Pneumatic Tool 1422 Professional Micro Hand Riveter – 3/16” Capacity is at a 8.5 inches long and 20% shorter than standard 3/16” hand riveters. Designed with Astro’s one of a kind torque multiplying lever, which allows for a higher pulling power with shorter arms and a maximum effective working stoke of 7mm. This kit includes nosepieces 3/32", 1/8", 5/32" for settings and 3/16" blind rivets.
Weight | 4.200000 |
---|---|
Brand | Astro Pneumatic |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty from date of shipment from vendor
