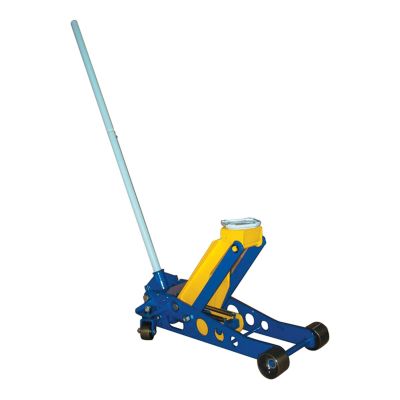

FLOOR JACK 2 1/2TON
Item ID:
AST250DP
FLOOR JACK 2 1/2TON
Features and Benefits:
- 8-9 pumps to full height
- Lifting arm reinforced with internal steel beam
- By-pass system
- Overload protection
- 1.9 ton on single stroke under normal load
Extra long handle for easier pumping and reach under vehicles. Universal 45 degrees guarantees pumping at any position under load. Heavy duty ball bearing rear casters. Extra wide front wheel. Meets ANSI standards for performance and safety.
Specifications:
- Minimum Saddle height: 4.33” (110mm)
- Maximum Saddle height: 19.3” (490mm)
- Chassis length: 27.5” (700mm)
- Height with handle: 56.5” (1435mm)
- Frame height: 6.5” (165mm)
- Saddle diameter: 4.8” (123mm)
- Net weight: 106.4lbs. (48.3kg)
- Strokes: 8 - 9
| Weight | 109.000000 |
|---|---|
| Net Weight | 106.4 lb |
| Jack Frame Material | Steel |
| Lifting Capacity | 2.5 Ton |
| Maximum Raised Height | 19.3" |
| Minimum Low Height | 4.33" |
| Saddle Dimensions | 4.8" |
| Saddle Pad Material | Steel |
| Handle Length | 56.5" |
| Front Caster Material | Steel |
| Jack Lifting Range | 15" |
| Number of Pumps Under Load | 8-9 pumps to load |
| Rear Caster Material | Steel |
| Release Type | Twist |
| Number of Pistons | Single Piston |
| Item | Service Jack |
