• Heavy duty hydraulic performance
• Welded hydraulic pump and cylinder construction
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminants
• Convenient foot pedal for no load lifts

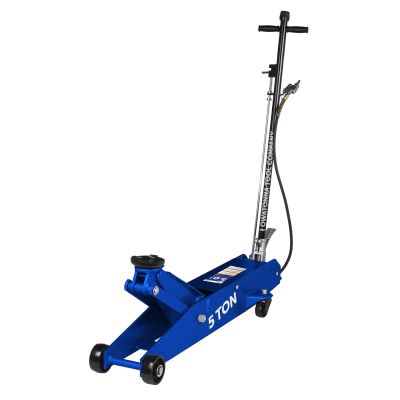

The HDJ5P is a long chassis, heavy duty 5-ton capacity, air-assisted hydraulic service jack. Rugged steel frame members ensure confident lifting service. Bearing-mounted rear swivel casters and front wheels with roller bearings make maneuvering and positioning the jack easy. Spring-loaded handle may be locked in three positions, from horizontal to vertical. Bring the versatility of air-assist operation to your shop’s lifting tasks with the OTC HDJ5P. Cycle tested design for a long life of professional duty.

Ideal size for lifting step vans, bucket trucks and smaller vehicles. Meets all 5 ASME PASE-2019 safety standards for service jacks. Limited Lifetime Warranty.

Specifications:

• Air pressure: 80–120 PSI
• Lifting range: 5-7/8" to 22"
• Reach: 87"
• Saddle: 5.1" dia., round
• Frame height: 7.5"
• Handle length: 45.4" 3-position with lock and release controls
• Footprint: 14.2" x 55.5"
• Casters: 4; 4.4" fixed front (2), 2.8" mid-body swivel (2
