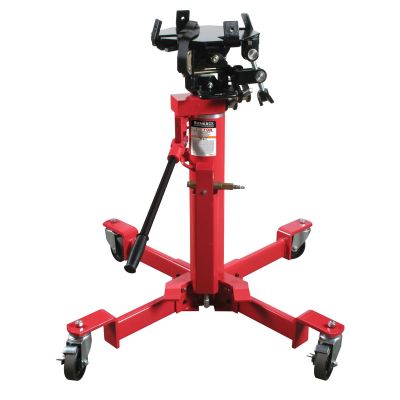

Features and Benefits:

• Fully adjustable lifting saddle with four ratchet adjustment fingers that quickly adjust to the transmission pan configuration
• Low lift height of 35” for easy transfer of transmission from jack to work bench. Maximum lift height of 75” accommodates all technicians
• Foot activated pedal raises air cylinder's ram to maximum load in seconds. Manual pump second stage quickly raises lifting saddle to desired and precise work height
• Convenient hand grip for pushing or pulling load when the load is in the lowered position
• Heavy duty nylon locking strap with ratchet fingers for securing the load to the lifting saddle

Fully adjustable lifting saddle with four ratchet adjustment fingers that quickly adjust to the transmission pan configuration.Heavy duty nylon locking strap with ratchet fingers for securing the load to the lifting saddle.Foot activated pedal raises air cylinder's ram to maximum load in seconds. Manual pump second stage quickly raises lifting saddle to desired and precise work height.Low lift height of 35” for easy transfer of transmission from jack to work bench. Maximum lift height of 75” accommodates all technicians.Foot activated lowering pedal provides slow controlled lowering of load for first stage and hydraulic release knob for second stage.Convenient hand grip for pushing or pulling load when the load is in the lowered position.Four full swivel ball bearing mounted caster wheels for easy maneuverability. Front casters can be easily locked to prevent the jack from rolling if necessary.Required Air Pressure100 PSILow Height35"Raised Height75"Saddle Forward Tilt37°Saddle Backward Tilt26°Saddle Lateral Tilt12° left and rightBase30-1/4" squareShipping Weight145 lbs.
